Detailed Introduction to Different Types of Vias in PCBs

In the design and manufacturing process ofprinted circuit boards (PCBs), vias are a crucial element. In this article, we will provide a detailed introduction to the characteristics, applicationscenarios, and importance of these vias in PCB design.

1. What is a PCB Via?

A PCB via is a hole in the printed circuitboard used for electrical connections between different layers of the PCB, PTHcomponent installation, or connection with external components (screws,connectors, etc.). They allow signals and power to pass between the variouslayers of the PCB. Depending on their function and structure, vias can bedivided into the following main types: Through-Hole, Buried Via, and Blind Via.

2. Importance of PCB Via Design

(1) If the circuit is very simple, vias may notbe necessary, but in the design of multilayer PCBs, vias are essential.

(2) In the case of multilayer boards, vias canincrease the density of components.

(3) As the number of PCB layers increases, the routing density becomes higher, and vias can connect different traces ondifferent layers of the PCB, acting as vertical connection elements.

(4) Without vias, routing can easily becomecomplicated, and components from BGA, connectors, and even multilayer PCBcomponents can be densely placed.

(5) Vias facilitate the transmission of signalsand power between layers. Without vias, all components would be on a singleplane, and there would be surface-mounted components, but components in amultilayer PCB cannot be routed on a single plane.

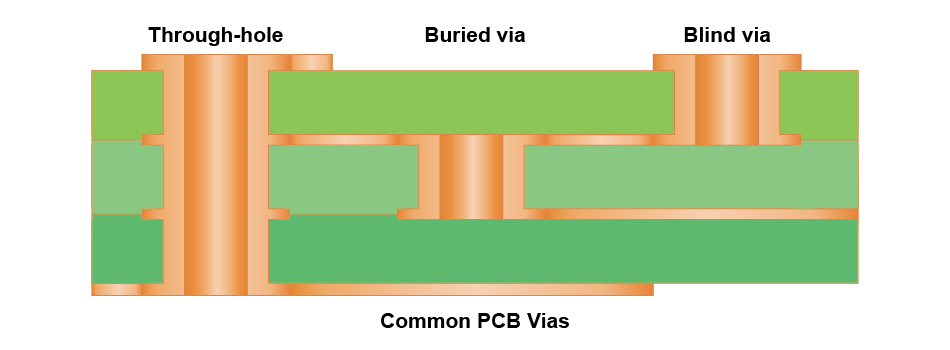

3. Three Basic Types of Vias in PCBs

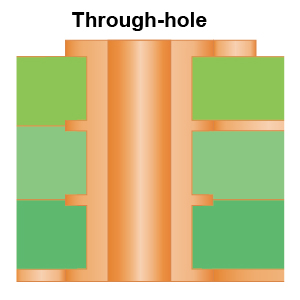

(1) Through-Hole Vias

Characteristics

Through-holes are the most common type ofvia, running through the entire thickness of the PCB. They provide electricalconnections from one side of the PCB to the other.

Applications

Through-holes are primarily used to connectsignals between the surface and internal layers, especially in multilayer PCBs.Due to their through-hole nature, they can provide conductive connectionsbetween all layers.

Advantages

• Relatively simple manufacturing process andlower cost.

• Provides robust mechanical connections,suitable for high-strength component installations.


Disadvantages

• Occupies larger space due to through-hole,not suitable for high-density designs.

• May increase the number of PCB layers andmanufacturing complexity.

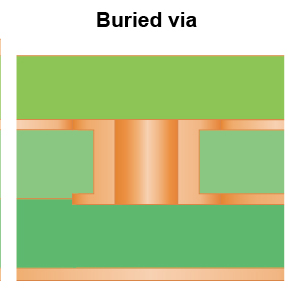

(2) Buried Vias

Characteristics

Buried vias are entirely buried within theinternal layers of the PCB and are not visible from the PCB's outer surface.These vias only connect signals between internal layers.

Applications

Buried vias are mainly used in multilayerPCB designs, especially in high-density interconnect (HDI) circuit boards. Theyallow designers to achieve complex internal layer connections without addingexternal layer vias.

Advantages

• Saves PCB surface space, beneficial forhigh-density routing.

• Reduces signal path length, helping toimprove signal transmission speed and quality.

Disadvantages

• Complex manufacturing process and highercost.

• Difficult to inspect and repair as they areburied within internal layers.

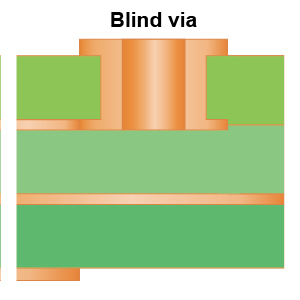

(3) Blind Vias

Characteristics

Blind vias start from one outer layer ofthe PCB but do not go through the entire PCB. They extend to one or severalinternal layers. Blind vias are typically used to connect the surface layer toone or more internal layers.

Applications

Blind vias are widely used in multilayerand HDI PCB designs, particularly where high routing density is required. Theyhelp to reduce routing congestion and improve design flexibility.

Advantages

• Enhances space utilization in the design,suitable for high-density designs.

• Shortens signal paths, helping to reducesignal delay and interference.

Disadvantages

• More complex manufacturing process andhigher cost.

• Requires precise control and inspectiontechniques to ensure via reliability.



Conclusion

Vias play a crucial role in PCB design andmanufacturing. Through-Hole, Buried, and Blind Vias each have their uniqueadvantages and application scenarios. Designers need to choose the appropriatevia type based on specific design requirements and application needs. Aselectronic products continue to evolve, the demand for higher PCB designdensity and complexity increases. Understanding and effectively using differenttypes of vias will help enhance the performance and reliability of PCBs.
